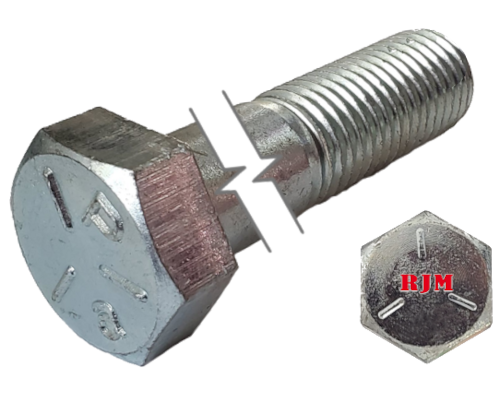

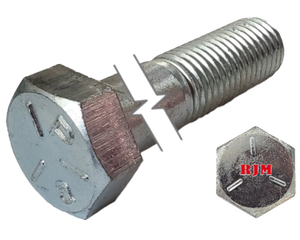

Imperial Hexagonal Bolt Partial Thread Zinc Plated 7/8-9 * 12" Grade 5

RJM-Fasteners

20.94 $ CAD
Save 7.91 $ CAD

Choose Your Package

Technical Drawing

(Click to enlarge)

Download

Description

Product Number	B5-09120
Nominal Diameter	7/8-9
Length	12"
Material and/or Plating	Zinc Plated
System of Measurement	Imperial
Thread Specifications
Threading	Partially Threaded
Type	UNC \| Coarse
Direction	Right Hand
Size	7/8-9
Min. Length	2-1/4"
Fit	Class 5g6g
Head Specification
Type	Hexagonal
Profile	Standard
Width	1-5/16"
Height	9/16"
Drive Style	External Hex
Strength Specifications
Strength Grade/Class	Grade 5
Tensile Strength \| Hardness	120,000 psi \| Rockwell C25
Shear Strength	72,000 psi
Classification	ASME B19.2.1 \| SAE J429

This hexagonal bolt has a length of 12" with a threading of 7/8-9 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

You will be satisfied with your purchase. Over 90% of our product are in stock and the Imperial Hexagonal Bolt Partial Thread Zinc Plated 7/8-9 * 12" Grade 5 are in stock.
