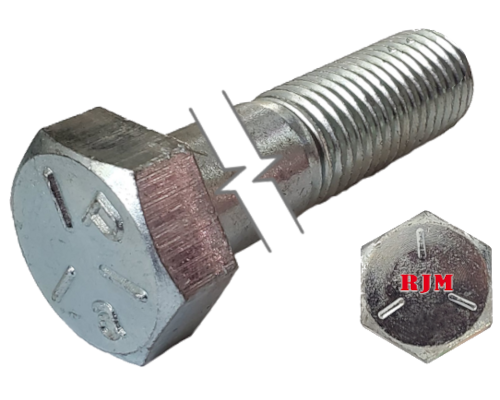

Imperial Hexagonal Bolt Partial Thread Zinc Plated  1/4-20 * 2" Grade 5 data-zoom=
Imperial Hexagonal Bolt Partial Thread Zinc Plated  1/4-20 * 2" Grade 5

Imperial Hexagonal Bolt Partial Thread Zinc Plated 1/4-20 * 2" Grade 5

RJM-Fasteners

  • 0.46 $ CAD

Choose Your Package

Only 0 left!

Technical Drawing

(Click to enlarge)

Technical drawing
Download

Description

Product Number B5-01020
Nominal Diameter 1/4-20
Length 2"
Material and/or Plating Zinc Plated
System of Measurement Imperial
Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/4-20
Min. Length 3/4"
Fit Class 5g6g
Head Specification
Type Hexagonal
Profile Standard
Width 7/16"
Height 5/32"
Drive Style External Hex
Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B19.2.1 | SAE J429

This hexagonal bolt has a length of 2" with a threading of 1/4-20 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

The Imperial Hexagonal Bolt Partial Thread Zinc Plated 1/4-20 * 2" Grade 5 are in Stock and ready to ship to your town.

If you have any inquiry or question, please feel free to contact us :
Info@RJM-Fasteners.ca

Imperial Hexagonal Bolt Partial Thread Zinc Plated 1/4-20 * 2" Grade 5
Inventory Last Updated: Mar 29, 2024
