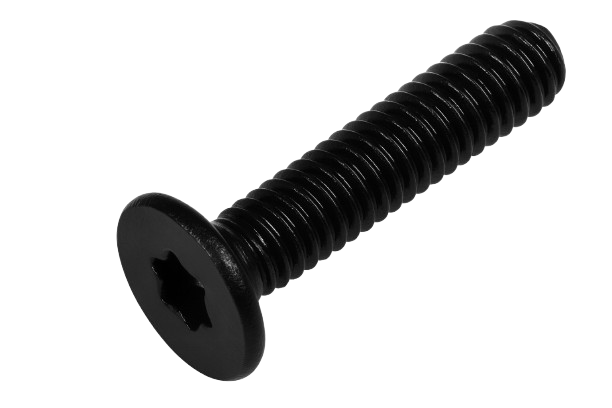

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M5 × 0.8 × 8

Flat Large Thin Pressure Screw – Metric SS 304 B.O. M5 × 0.8 × 8

Prix habituel 0.73 $ CAD
Prix habituel Prix promotionnel 0.73 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantity
Télécharger

metric pressure screw is manufactured from stainless steel 304 with a black oxide finish, providing strength, corrosion resistance, and a sleek look.
Its flat, large, and thin head ensures secure fastening with minimal protrusion, making it ideal for sheet metal work, machinery, and flush applications.
With dimensions of M5 × 0.8 × 8 mm, it is suitable for compact assemblies requiring both durability and precision.

Afficher tous les détails

Spécifications

Specifications

Diamètre nominal M5
Longueur 8 mm
Matière et/ou traitement Inox 304, oxyde noir
Système de mesure ISO

Thread Specifications

Filetage Filetage complet
Type Coarse
Direction À droite
Taille M5 × 0.8
Longueur du fût 8 mm
Ajustement Class 6g

Head Specification

Type Plate | Large Mince
Profil Profil bas | Affleurant
Diamètre 10.0 mm
Hauteur 2.5 mm
Empreinte Fendue / Six pans creux

Neck Specification

Forme Cylindrique
Largeur 5.0 mm
Hauteur 2.0 mm

Strength Specifications

Classe de résistance A2-70
Résistance traction | Dureté 700 MPa
Résistance cisaillement 420 MPa
Classification ISO 3506
