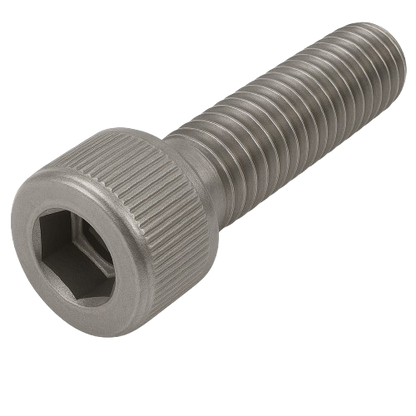

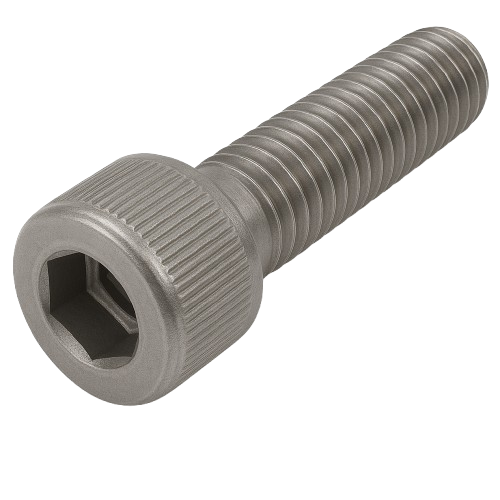

Vis À Tête Cylindrique À Six Pans Creux Métriques En Acier Inoxydable A4 [équivalent 316 SS] Filetage Complet M2.5 * 0.45 * 4mm [clé Allen]

Vis À Tête Cylindrique À Six Pans Creux Métriques En Acier Inoxydable A4 [équivalent 316 SS] Filetage Complet M2.5 * 0.45 * 4mm [clé Allen]

Prix habituel 0.20 $ CAD
Prix habituel Prix promotionnel 0.20 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Titre
Télécharger

Cette vis à tête cylindrique à six pans creux mesure 4mm de long et possède un filetage M2.5 * 0.45 mm [entièrement filetée]. Fabriquée en acier inoxydable A4 [équivalent 316 SS], elle offre une excellente résistance à la corrosion en environnements secs et humides.

L'acier inoxydable A4 [équivalent 316 SS] augmentent sa résistance à la pression et présentent une résistance à la traction et une dureté de 75 000 psi | Rockwell B79. De plus, elle présente une résistance au cisaillement de 45 000 psi.

Pas métrique ISO | Les filetages grossiers sont une norme industrielle. Ces vis sont classées DIN 912 et sont conformes aux normes dimensionnelles.

Afficher tous les détails

Spécifications

Product Number VPSCMT3-02504
Nominal Diameter M2.5 * 0.45mm
Length 4mm
Material and/or Plating A4 Stainless Steel [Equivalent 316 SS]
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M2.5 * 0.45mm
Fit Class 5g6g

Head Specifications

Type Socket
Profile Standard
Diameter 4.50mm
Height 2.50mm
Drive Style Allen Key
Drive Size 2.00mm

Strength Specifications

Strength Grade/Class

Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification DIN 912
