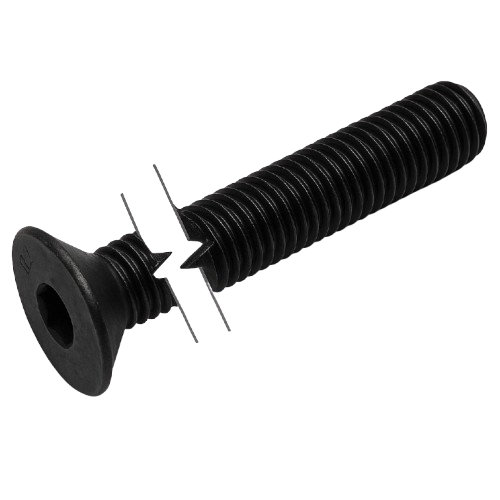

Vis À Tête Plate Métrique En Acier Allié Oxydé Noir, Filetage Complet M20 * 2.5 * 65mm, Grade 12.9 [clé Allen]

Vis À Tête Plate Métrique En Acier Allié Oxydé Noir, Filetage Complet M20 * 2.5 * 65mm, Grade 12.9 [clé Allen]

Prix habituel 8.67 $ CAD
Prix habituel Prix promotionnel 8.67 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Titre
Télécharger

Cette vis à tête cylindrique à tête plate mesure 65mm de long et possède un filetage M20 * 2.5 mm [entièrement filetée]. Fabriquée en acier allié oxydé noir, elle offre une légère résistance à la corrosion en milieu sec.

Le 12.9 augmentent sa résistance à la pression et offrent une résistance à la traction et une dureté de 170 000 psi | Rockwell C39. De plus, elle présente une résistance au cisaillement de 102 000 psi.

Pas métrique ISO | Les filetages grossiers sont une norme industrielle. Ces vis sont classées DIN 7991 et sont conformes aux normes dimensionnelles.

Afficher tous les détails

Spécifications

Product Number VPFMT-20065
Nominal Diameter M20 * 2.5mm
Length 65mm
Material and/or Plating Black-Oxide Alloy Steel
System of Measurement Metric

Thread Specifications

Threading Fully Threaded
Type ISO Metric Pitch | Coarse
Direction Right Hand
Size M20 * 2.5mm
Fit Class 5g6g

Head Specifications

Type Flat
Profile Standard
Diameter 36.00mm
Height 8.50mm
Drive Style Allen Key
Drive Size 12.00mm

Strength Specifications

Strength Grade/Class Grade 12.9
Tensile Strength | Hardness 170,000 psi | Rockwell C39
Shear Strength 102,000 psi
Classification DIN 7991
