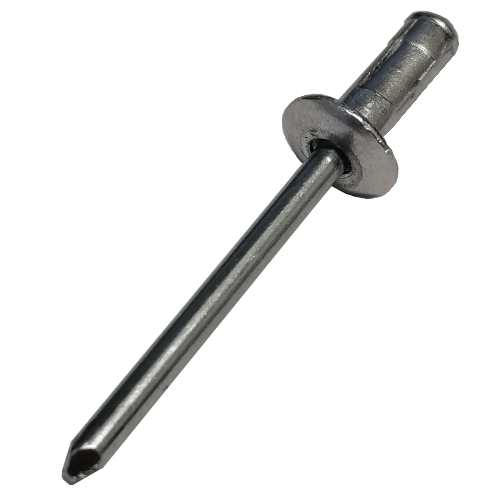

Rivets pop multi-prise bombés en aluminium/acier 3/16" x 7/16" [POIGNÉE : 3/16" à 5/16" | PERÇAGE : n° 11]

Rivets pop multi-prise bombés en aluminium/acier 3/16" x 7/16" [POIGNÉE : 3/16" à 5/16" | PERÇAGE : n° 11]

Prix habituel 0.28 $ CAD
Prix habituel Prix promotionnel 0.28 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantité
Télécharger

Ces rivets aveugles assurent une fixation solide, même dans les zones humides. Leur tête bombée confère à votre projet un aspect soigné.

Utilisez ces rivets aveugles pour fixer des charnières, des étagères ou d'autres assemblages accessibles d'un seul côté. Ils permettent également d'assembler des matériaux difficiles à souder. L'arrière du rivet se déforme lors de la pose, créant ainsi une fixation permanente qui ne se desserrera pas sous l'effet des vibrations. Cela évite également tout serrage excessif ou arrachement.

Pour installer ces rivets, vous aurez besoin d'un outil à riveter aveugle (vendu séparément). Assurez-vous de choisir un outil compatible avec le diamètre et le matériau de votre rivet.

Ceux qui répondent à la norme IFI 114 sont conformes aux normes de l’industrie.

Afficher tous les détails

Spécifications

Product Number RIM-00803A-AL-AC
Rivet Type Blind [Pop Rivet] | Multigrip
Mandrel Diameter 3/16"
Length 7/16"
Mandrel Material Aluminum
Mandrel Plating/Color Plain
Rod Material Steel
Rod Plating/Color Zinc Plated
For Material Thickness 3/16" to 5/16"
For Drill Bit Size No. 11
For Hole Size 0.192"-0.196"
Head Type Domed
Head Size Standard
Head Diameter 0.375"
Head Height 0.08"
Shear Strength 950 lbs.
Tensile Strength 1,200 lbs.
Specifications Met IFI 114 Standards
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
