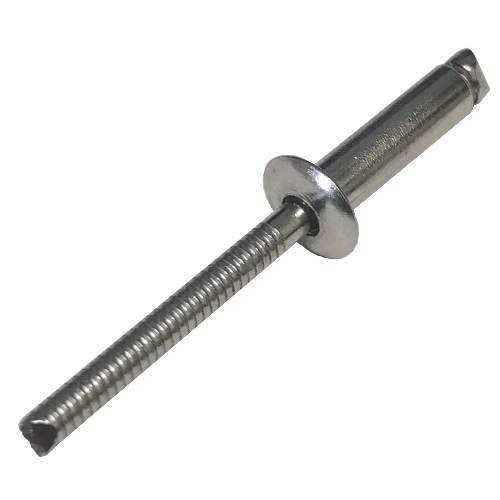

Rivet Pop Bombé En Acier Inoxydable/Acier Inoxydable 3/16" * 11/16" [poignée : 7/16" à 9/16" | perçage : n° 11]

Rivet Pop Bombé En Acier Inoxydable/Acier Inoxydable 3/16" * 11/16" [poignée : 7/16" à 9/16" | perçage : n° 11]

Prix habituel 0.93 $ CAD
Prix habituel Prix promotionnel 0.93 $ CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Quantité
Télécharger

Ces rivets aveugles assurent une fixation solide, même dans les zones humides. Leur tête bombée confère à votre projet un aspect fini.

Utilisez ces rivets aveugles pour fixer des charnières, des étagères ou d'autres assemblages accessibles d'un seul côté. Ils peuvent également servir à assembler des matériaux difficiles à souder. L'arrière du rivet se déforme lors de la pose, créant ainsi une fixation permanente qui ne se desserrera pas sous l'effet des vibrations. Cela évite également tout serrage excessif ou arrachement.

Pour poser ces rivets, vous aurez besoin d'un outil pour rivets aveugles (vendu séparément). Assurez-vous de choisir un outil compatible avec le diamètre et le matériau de votre rivet.

Ceux qui sont conformes à la norme IFI 114 sont conformes aux normes industrielles.

Afficher tous les détails

Spécifications

Product Number RI-00806A-SS
Rivet Type Blind [Pop Rivet] | Standard
Mandrel Diameter 3/16"
Length 11/16"
Mandrel Material Stainless Steel
Mandrel Plating/Color Plain
Rod Material Stainless Steel
Rod Plating/Color Plain
For Material Thickness 7/16" to 9/16"
For Drill Bit Size No. 11
For Hole Size 0.192"-0.196"
Head Type Domed
Head Size Standard
Head Diameter 0.375"
Head Height 0.08"
Shear Strength 950 lbs.
Tensile Strength 1,200 lbs.
Specifications Met IFI 114 Standards
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
