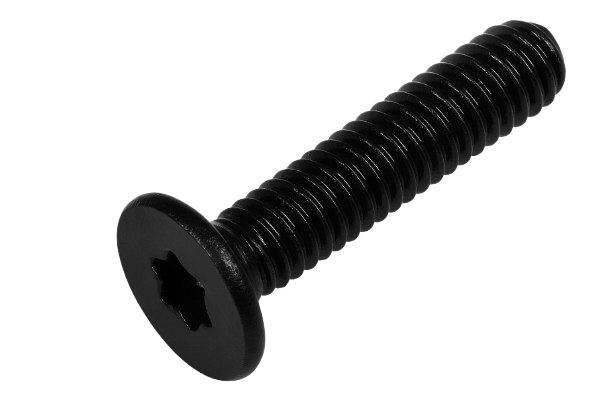

Low-profile flat wide head pressure screw – M2.5 × 0.45 × 20 mm – Stainless Steel 304 – B.O. finish

Low-profile flat wide head pressure screw – M2.5 × 0.45 × 20 mm – Stainless Steel 304 – B.O. finish

$1.00
$1.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

M2.5 × 0.45 × 20 mm pressure screw is built for deep or through-hole assemblies, requiring a long and discreet fastener with strong corrosion resistance.
Made of AISI 304 stainless steel, it ensures durability for mechanical, electronic, and outdoor environments.
Its wide, low-profile flat head allows for a flush mount and a clean finish, even in tight spaces.

View full details

Specifications

Thread Specifications
Thread Type Metric ISO fine pitch
Nominal Diameter M2.5
Thread Pitch 0.45 mm
Thread Length 20 mm
Thread Direction Right-hand
Thread Tolerance 6g
Standard ISO 965 / ISO 261
Material Stainless Steel AISI 304

Head Specifications
Head Type Wide flat head, low profile
Head Diameter ~4.5 to 5.2 mm
Head Height ~0.6 to 0.9 mm
Drive Type None or slotted (depending on version)
Surface Finish B.O. – As-machined or brushed
Material Stainless Steel 304
Application Flush mount, long/deep assemblies, precision builds
