Specifications

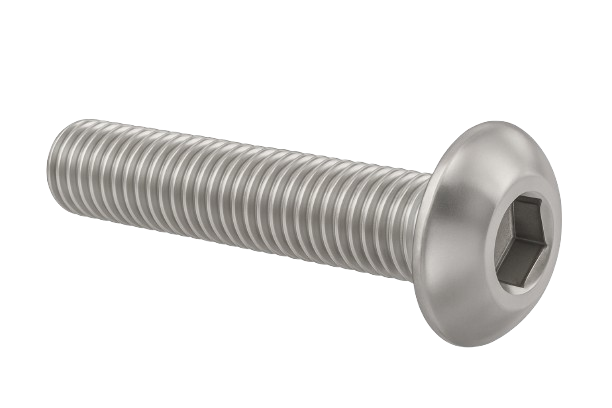

| Product Number | VPSBM-06050 |
| Nominal Diameter | M6 * 1mm |
| Length | 50mm |
| Material and/or Plating | A2 Stainless Steel [Equivalent 304 SS] |
| System of Measurement | Metric |
Thread Specifications |
|
| Threading | Fully Threaded |
| Type | ISO Metric Pitch | Coarse |
| Direction | Right Hand |
| Size | M6 * 1mm |
| Fit | Class 5g6g |
Head Specifications |
|
| Type | Button |
| Profile | Standard |
| Diameter | 13.60mm |
| Height | 3.30mm |
| Drive Style | Allen Key |
| Drive Size | 4.00mm |
Strength Specifications |
|
| Tensile Strength | Hardness | 70,000 psi | Rockwell B70 |
| Shear Strength | 42,000 psi |
| Classification | DIN 7380 |
