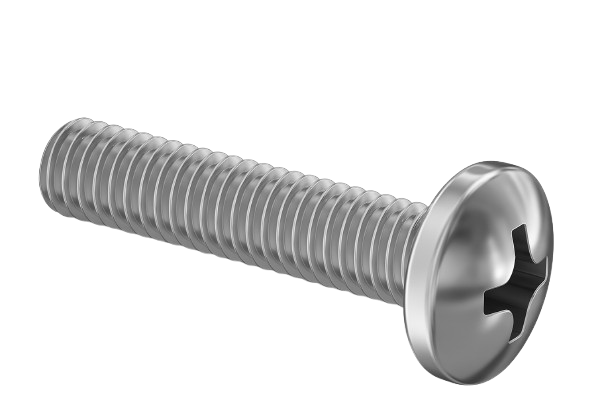

Pan Head Machine Screw Full Thread Stainless Steel 3/8-16 * 6" [Philips Drive]

Pan Head Machine Screw Full Thread Stainless Steel 3/8-16 * 6" [Philips Drive]

$36.00
$36.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Partially threaded screws thread length may vary from the minimum thread length published to fully threaded.

Passivated stainless steel screws provide added protection against oxidation and corrosion.

View full details

Specifications
Product Number VMSP-03060
Thread Size 3/8"-16
Length 6"
Threading Fully Threaded
Head Diameter 0.740"
Head Height 0.261"
Drive Style Phillips
Drive Size No. 4
Material 304 Stainless Steel
Hardness Rockwell B70
Tensile Strength 70,000 psi
Screw Size Decimal Equivalent 0.375"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Pan
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS 3 (2015/863/EU) Compliant
