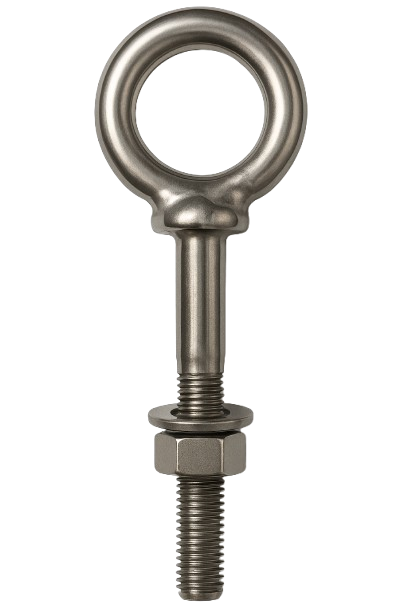

Eye Bolts Without Shoulder 1/2-13 * 1-1/2"

Eye Bolts Without Shoulder 1/2-13 * 1-1/2"

$13.00
$13.00
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as machinery eyebolts.

Note: Capacities listed are for vertical lifting only.Eyebolts with shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. The bolts have a thread of 1/2-13 and a length of 1-1/2.

Warning: Never use to lift people or items over people. The bolt usage limit is 2400 lbs.



View full details

Specifications
Product Number BOE-05015
Application For Lifting

Thread
Size 1/2"-13
Length 1 1/2"
Length 1-1/2"
Eye Diameter 1 3/16"
Vertical Working Load Limit 2,400 lbs.
Eye Style Closed
Eye Shape Round
Material Steel
Finish Zinc Plated
Threading Fully Threaded
Movement Rigid
Body Style With Shoulder
RoHS RoHS 3 (2015/863/EU) compliant
